LORD CB-1100 Series Center Bonded Rubber Mounts

Static Axial Load Range: 75 - 2100 lbs (330 - 9350 N)

"Isolate vibration, control shock and reduce noise due to structure-borne vibrations..."

LORD Center-Bonded Mounts isolate vibration, control shock and reduce noise due to structure-borne vibrations. Available in a full range of rated load capacities and able to withstand shock loads of 10 Gs, these mounts effectively protect equipment and improve operator comfort.

Features & Benefits

  • Dynamically effective in all directions
  • Noise attenuation
  • Rebound capacity
  • Economical
  • Easy to install
  • No special tools or torquing requirements
  • Long service life
  • Requires small space
  • Fail safe
  • Metals corrosion protected
Rubber-Parts-Catalog-Delta-Flex-LORD-Center-Bonded-Mounts-CB-1100-Series
Catalog
Application Analysis Forms
Lets Get Started!

Quick Quote
Ask A Question
Engineering Support
  (800) 657-0747
  Address
  About Us



Specs
Specs Metric

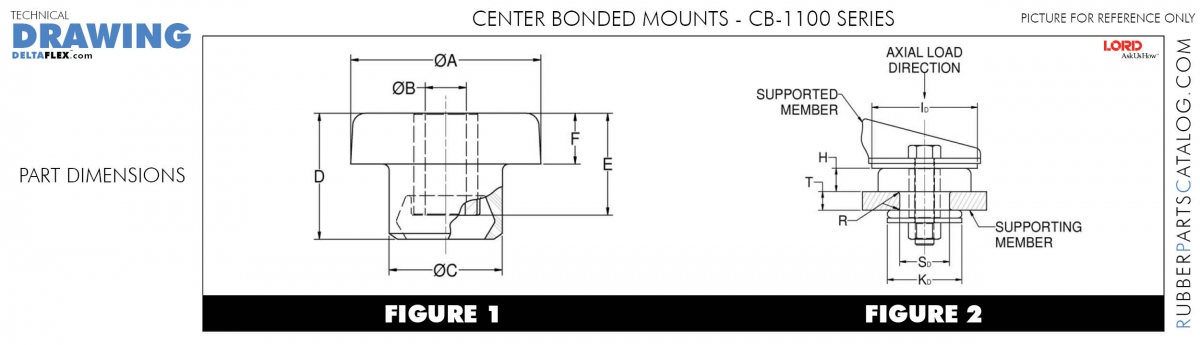

Dimensions
Dimensions Metric
reset matrix
clear
Part #
clear
Axial Static Load (lbs.)
clear
Deflection (in.)
clear
Nominal Dynamic/Static Spring Rate Ratio
clear
Head Washer
clear
Tail Washer
clear
Bolt Size
CB-1120-1 75 lbs. 0.03 in. 1.08 Ratio J-2049-62 J-2049-61 0 3/8"
CB-1120-3 125 lbs. 0.03 in. 1.19 Ratio J-2049-62 J-2049-61 0 3/8"
CB-1121-2 250 lbs. 0.04 in. 1.15 Ratio J-2049-64 J-2049-63 0 1/2"
CB-1121-4 450 lbs. 0.04 in. 1.22 Ratio J-2049-64 J-2049-63 0 1/2"
CB-1122-2 350 lbs. 0.06 in. 1.15 Ratio J-2049-65 J-2049-64 0 1/2"
CB-1122-4 600 lbs. 0.06 in. 1.22 Ratio J-2049-65 J-2049-64 0 1/2"
CB-1123-2 500 lbs. 0.07 in. 1.15 Ratio J-2049-68 J-2049-66 0 5/8"
CB-1123-5 1000 lbs. 0.06 in. 1.23 Ratio J-2049-68 J-2049-66 0 5/8"
CB-1124-2 750 lbs. 0.09 in. 1.15 Ratio J-2049-70 J-2049-67 0 5/8"
CB-1124-5 1400 lbs. 0.07 in. 1.23 Ratio J-2049-70 J-2049-67 0 5/8"
CB-1125-2 1400 lbs. 0.13 in. 1.15 Ratio J-2049-71 J-2049-69 0 3/4"
CB-1125-4 2100 lbs. 0.12 in. 1.22 Ratio J-2049-71 J-2049-69 0 3/4"
reset matrix
clear
Part #
clear
Axial Static Load (N)
clear
Deflection (mm)
clear
Bolt Size (Metric)
CB-1120-1 330 N 0.64 mm M10
CB-1120-3 560 N 0.64 mm M10
CB-1121-2 1110 N 1.02 mm M12
CB-1121-4 2000 N 1.02 mm M12
CB-1122-2 1560 N 1.52 mm M12
CB-1122-4 2670 N 1.52 mm M12
CB-1123-2 2230 N 1.78 mm M16
CB-1123-5 4450 N 1.52 mm M16
CB-1124-2 3340 N 2.16 mm M16
CB-1124-5 6230 N 1.78 mm M16
CB-1125-2 6230 N 3.30 mm M18
CB-1125-4 9350 N 3.05 mm M18
reset matrix
clear
Part #
clear
A (in.)
clear
B (in.)
clear
C (in.)
clear
D (in.)
clear
E (in.)
clear
F (in.)
clear
H (in.)
clear
I (in.)
clear
K (in)
clear
R (in.)
clear
SD (in.)
clear
T (in.)
CB-1120-1 1.09 in. 0.40 in. 0.81 in. 1.02 in. 0.62 in. 0.22 in. 0.21 in. 1.25 in. 1.12 in. 0.06 in. 0.75 in. 0.31 in.
CB-1120-3 1.09 in. 0.40 in. 0.81 in. 1.02 in. 0.62 in. 0.22 in. 0.21 in. 1.25 in. 1.12 in. 0.06 in. 0.75 in. 0.31 in.
CB-1121-2 1.75 in. 0.52 in. 1.24 in. 1.25 in. 1.00 in. 0.41 in. 0.38 in. 2.00 in. 1.50 in. 0.06 in. 1.12 in. 0.38 in.
CB-1121-4 1.75 in. 0.52 in. 1.24 in. 1.25 in. 1.00 in. 0.41 in. 0.38 in. 2.00 in. 1.50 in. 0.06 in. 1.12 in. 0.38 in.
CB-1122-2 2.00 in. 0.53 in. 1.35 in. 1.62 in. 1.31 in. 0.53 in. 0.45 in. 2.25 in. 2.00 in. 0.06 in. 1.25 in. 0.62 in.
CB-1122-4 2.00 in. 0.53 in. 1.35 in. 1.62 in. 1.31 in. 0.53 in. 0.45 in. 2.25 in. 2.00 in. 0.06 in. 1.25 in. 0.62 in.
CB-1123-2 2.50 in. 0.65 in. 1.62 in. 2.00 in. 1.69 in. 0.62 in. 0.56 in. 2.88 in. 2.25 in. 0.06 in. 1.50 in. 0.75 in.
CB-1123-5 2.50 in. 0.65 in. 1.62 in. 2.00 in. 1.69 in. 0.62 in. 0.56 in. 2.88 in. 2.25 in. 0.06 in. 1.50 in. 0.75 in.
CB-1124-2 2.98 in. 0.65 in. 1.98 in. 2.22 in. 2.00 in. 0.81 in. 0.71 in. 3.50 in. 2.50 in. 0.06 in. 1.81 in. 0.93 in.
CB-1124-5 2.98 in. 0.65 in. 1.98 in. 2.22 in. 2.00 in. 0.81 in. 0.71 in. 3.50 in. 2.50 in. 0.06 in. 1.81 in. 0.93 in.
CB-1125-2 3.74 in. 0.80 in. 2.23 in. 2.48 in. 2.00 in. 1.00 in. 0.94 in. 4.25 in. 3.00 in. 0.12 in. 2.00 in. 0.75 in.
CB-1125-4 3.74 in. 0.80 in. 2.23 in. 2.48 in. 2.00 in. 1.00 in. 0.94 in. 4.25 in. 3.00 in. 0.12 in. 2.00 in. 0.75 in.
reset matrix
clear
Part #
clear
A (mm)
clear
B (mm)
clear
C (mm)
clear
D (mm)
clear
E (mm)
clear
F (mm)
clear
H (mm)
clear
I (mm)
clear
K (mm)
clear
R (mm)
clear
S (mm)
clear
T (mm)
CB-1120-1 27.7 mm 10.2 mm 20.6 mm 25.9 mm 15.7 mm 5.6 mm 5.3 mm 31.8 mm 28.5 mm 1.5 mm 19.1 mm 7.9 mm
CB-1120-3 27.7 mm 10.2 mm 20.6 mm 25.9 mm 15.7 mm 5.6 mm 5.3 mm 31.8 mm 28.5 mm 1.5 mm 19.1 mm 7.9 mm
CB-1121-2 44.5 mm 13.1 mm 31.5 mm 31.8 mm 25.4 mm 10.4 mm 9.7 mm 50.8 mm 38.1 mm 1.5 mm 28.4 mm 9.7 mm
CB-1121-4 44.5 mm 13.1 mm 31.5 mm 31.8 mm 25.4 mm 10.4 mm 9.7 mm 50.8 mm 38.1 mm 1.5 mm 28.4 mm 9.7 mm
CB-1122-2 50.8 mm 13.5 mm 34.3 mm 41.1 mm 33.3 mm 13.5 mm 11.4 mm 57.2 mm 50.8 mm 1.5 mm 31.8 mm 15.8 mm
CB-1122-4 50.8 mm 13.5 mm 34.3 mm 41.1 mm 33.3 mm 13.5 mm 11.4 mm 57.2 mm 50.8 mm 1.5 mm 31.8 mm 15.8 mm
CB-1123-2 63.5 mm 16.5 mm 41.2 mm 50.8 mm 42.9 mm 15.7 mm 14.2 mm 73.2 mm 57.2 mm 1.5 mm 38.1 mm 19.1 mm
CB-1123-5 63.5 mm 16.5 mm 41.2 mm 50.8 mm 42.9 mm 15.7 mm 14.2 mm 73.2 mm 57.2 mm 1.5 mm 38.1 mm 19.1 mm
CB-1124-2 75.7 mm 16.5 mm 50.3 mm 56.4 mm 50.8 mm 20.6 mm 18.0 mm 88.9 mm 63.5 mm 1.5 mm 46.0 mm 23.6 mm
CB-1124-5 75.7 mm 16.5 mm 50.3 mm 56.4 mm 50.8 mm 20.6 mm 18.0 mm 88.9 mm 63.5 mm 1.5 mm 46.0 mm 23.6 mm
CB-1125-2 95.0 mm 20.4 mm 56.6 mm 63.0 mm 50.8 mm 25.4 mm 23.9 mm 108.0 mm 76.2 mm 3.0 mm 50.8 mm 19.1 mm
CB-1125-4 95.0 mm 20.4 mm 56.6 mm 63.0 mm 50.8 mm 25.4 mm 23.9 mm 108.0 mm 76.2 mm 3.0 mm 50.8 mm 19.1 mm
