LORD Safetied Tubeform Series Rubber Vibration Mounts

Static Axial Load Range: 320 - 1,780 lbs (1423 - 7918 N)

"Vibration and shock protection are provided in all directions..."

Lord Center-Bonded Safetied Tubeform Series is designed to give similar characteristics as the Center-Bonded STA Series by simply placing the mount in a clearance hole that can be punched, burned, cast or drilled into the supporting member. The main advantage of this series is ease of installation. The bolt which assembles the supported member to the mount can be tightened to normal torque. Proper pre-compression of the flexing element takes place when the bolt is tightened against the mount's inner member.

Features and Benefits

Dynamically effective in all directions
Misalignment capability
Tapered for ease of installation
Built-in rebound protection
Consistent performance
Space saving size
Long service life
Low cost installation

CATALOG

Application Analysis Forms

Lets Get Started!

Quick Quote

Ask A Question

Engineering Support

ENGINEERING ASSISTANCE -

DeltaFlex is committed to providing you with the best engineering support experience possible.

"Frequently vibration isolation problems require a system engineering analysis..." - Put us to work for you.

Thank you for taking the time to learn about DeltaFlex and our . Our applications engineer will help find the right solution for your application.

Our goal is to provide you with most efficient and effective engineering support. The more information you can provide upfront, the more diligent we can be in assisting you with your request.

We know that your time is valuable. So, we have filled-in some of the information for you.

Thank you...for putting DeltaFlex to work for you.

Engineering Support

Limits the travel for stability

Shock loads are controlled by compression snubbing which limits the travel for stability. The safetied design feature keeps the system captive in the event the elastomer is destroyed. Vibration and shock protection are provided in all directions. Elastomer bonded to the inner and outer metal parts gives extra strength, resilient performance and necessary flexibility to accommodate twisting and racking.

Specs

Specs Metric

Dimensions

Dimensions Metric

reset matrix

clear Part #	clear Elastomer	clear Nominal Axial Static Load	clear Max Axial Static Load	clear Nominal Radial Static Load	clear Max Radial Static Load	clear Axial Static Deflection at Nominal Load	clear Bolt Size
J-20595-1	NR	320 lbs / 1423 N	480 lbs / 2135 N	160 lbs / 712 N	320 lbs / 1423 N	0.10 in / 2.5 mm	5/8"
J-20595-5	NR	680 lbs / 3025 N	680 lbs / 4537 N	340 lbs / 1512 N	680 lbs / 3025 N	0.10 in / 2.5 mm	5/8"
J-20595-12	OR	380 lbs / 1690 N	570 lbs / 2535 N	190 lbs / 845 N	380 lbs / 1690 N	0.10 in / 2.5 mm	5/8"
J-20595-13	OR	460 lbs / 2046 N	690 lbs / 3069 N	230 lbs / 1023 N	460 lbs / 2046 N	0.10 in / 2.5 mm	5/8"
J-18748-23	NR	680 lbs / 3025 N	1020 lbs / 4537 N	340 lbs / 1512 N	680 lbs / 3025 N	0.10 in / 2.5 mm	3/4"
J-18748-27	OR	560 lbs / 2490 N	840 lbs / 3736 N	280 lbs / 1245 N	560 lbs / 2490 N	0.10 in / 2.5 mm	3/4"
J-18748-28	OR	680 lbs / 3025 N	1020 lbs / 4537 N	340 lbs / 1512 N	680 lbs / 3025 N	0.10 in / 2.5 mm	3/4"
J-18748-29	OR	830 lbs / 3692 N	1245 lbs / 5538 N	415 lbs / 1846 N	830 lbs / 3692 N	0.10 in / 2.5 mm	3/4"
J-18748-30	OR	1000 lbs / 4448 N	1500 lbs / 6672 N	500 lbs / 2224 N	1000 lbs / 4448 N	0.10 in / 2.5 mm	3/4"
J-18787-13	NR	1210 lbs / 5382 N	1815 lbs / 8073 N	605 lbs / 2691 N	1210 lbs / 5382 N	0.10 in / 2.5 mm	1"
J-18787-15	NR	1780 lbs / 7918 N	2700 lbs / 12,010 N	890 lbs / 3959 N	1780 lbs / 7918 N	0.10 in / 2.5 mm	1"
J-18787-16	NR	830 lbs / 3692 N	1245 lbs / 5538 N	415 lbs / 1846 N	830 lbs / 3692 N	0.10 in / 2.5 mm	1"
J-18787-19	NR	1470 lbs / 6539 N	2205 lbs / 9908 N	735 lbs / 3269 N	1470 lbs / 6539 N	0.10 in / 2.5 mm	1"
J-18787-20	NR	1780 lbs / 7918 N	2700 lbs / 12,010 N	890 lbs / 3959 N	1780 lbs / 7918 N	0.10 in / 2.5 mm	1"

reset matrix

clear Part #	clear Bolt Size (Metric)
J-20595-1	M16
J-20595-5	M16
J-20595-12	M16
J-20595-13	M16
J-18748-23	M18
J-18748-27	M18
J-18748-28	M18
J-18748-29	M18
J-18748-30	M18
J-18787-13	M24
J-18787-15	M24
J-18787-16	M24
J-18787-19	M24
J-18787-20	M24

reset matrix

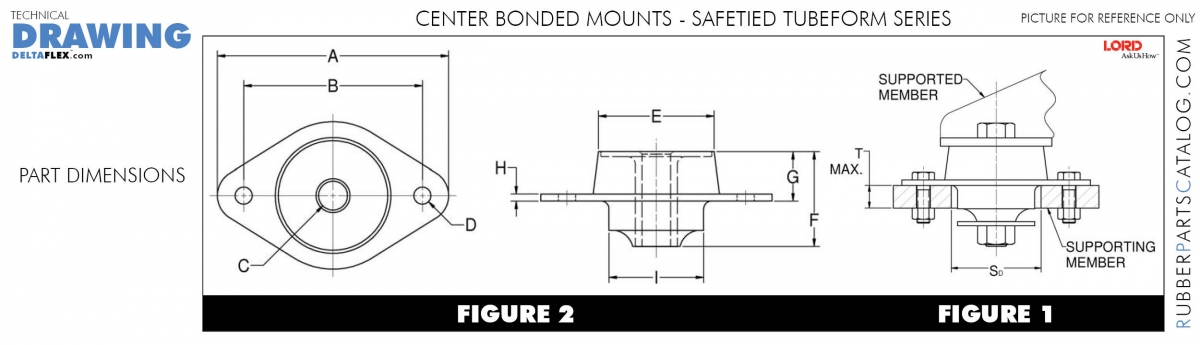

clear Part #	clear A (in.)	clear B (in.)	clear C (in.)	clear D (in.)	clear E (in.)	clear F (in.)	clear G (in.)	clear H (in.)	clear I (in.)	clear SD (in.)	clear T (in.)
J-20595-1	5.25 in.	4.25 in.	0.87 in.	0.41 in.	2.75 in.	2.25 in.	1.18 in.	0.13 in.	2.25 in.	2.62 in.	0.69 in.
J-20595-5	5.25 in.	4.25 in.	0.87 in.	0.41 in.	2.75 in.	2.25 in.	1.18 in.	0.13 in.	2.25 in.	2.62 in.	0.69 in.
J-20595-12	5.25 in.	4.25 in.	0.87 in.	0.41 in.	2.75 in.	2.25 in.	1.18 in.	0.13 in.	2.25 in.	2.62 in.	0.69 in.
J-20595-13	5.25 in.	4.25 in.	0.87 in.	0.41 in.	2.75 in.	2.25 in.	1.18 in.	0.13 in.	2.25 in.	2.62 in.	0.69 in.
J-18748-23	6.25 in.	5.00 in.	0.78 in.	0.53 in.	3.38 in.	3.00 in.	1.38 in.	0.19 in.	2.50 in.	2.88 in.	1.25 in.
J-18748-27	6.25 in.	5.00 in.	0.78 in.	0.53 in.	3.38 in.	3.00 in.	1.38 in.	0.19 in.	2.50 in.	2.88 in.	1.25 in.
J-18748-28	6.25 in.	5.00 in.	778.00 in.	0.53 in.	3.38 in.	3.00 in.	1.38 in.	0.19 in.	2.50 in.	2.88 in.	1.25 in.
J-18748-29	6.25 in.	5.00 in.	0.78 in.	0.53 in.	85.90 in.	76.20 in.	35.10 in.	0.19 in.	2.50 in.	2.88 in.	1.25 in.
J-18748-30	6.25 in.	5.00 in.	0.78 in.	0.53 in.	3.38 in.	3.00 in.	1.38 in.	0.19 in.	2.50 in.	2.88 in.	1.25 in.
J-18787-13	7.50 in.	6.00 in.	1.07 in.	0.66 in.	4.38 in.	4.00 in.	1.50 in.	0.25 in.	3.30 in.	3.75 in.	2.00 in.
J-18787-15	7.50 in.	6.00 in.	1.07 in.	0.66 in.	4.38 in.	4.00 in.	1.50 in.	0.25 in.	3.30 in.	3.75 in.	2.00 in.
J-18787-16	7.50 in.	6.00 in.	1.07 in.	0.66 in.	4.38 in.	4.00 in.	1.50 in.	0.25 in.	3.30 in.	3.75 in.	2.00 in.
J-18787-19	7.50 in.	6.00 in.	1.07 in.	0.66 in.	4.38 in.	4.00 in.	1.50 in.	0.25 in.	3.30 in.	3.75 in.	2.00 in.
J-18787-20	7.50 in.	6.00 in.	1.07 in.	0.66 in.	4.38 in.	4.00 in.	1.50 in.	0.25 in.	3.30 in.	3.75 in.	2.00 in.

reset matrix

clear Part #	clear A (mm)	clear B (mm)	clear C (mm)	clear D (mm)	clear E (mm)	clear F (mm)	clear G (mm)	clear H (mm)	clear I (mm)	clear S (mm)	clear T (mm)
J-20595-1	133.4 mm	108.0 mm	17.4 mm	10.3 mm	69.9 mm	57.2 mm	30.0 mm	3.2 mm	57.2 mm	66.5 mm	17.5 mm
J-20595-5	133.4 mm	108.0 mm	17.4 mm	10.3 mm	69.9 mm	57.2 mm	30.0 mm	3.2 mm	57.2 mm	66.5 mm	17.5 mm
J-20595-12	133.4 mm	108.0 mm	17.4 mm	10.3 mm	69.9 mm	57.2 mm	30.0 mm	3.2 mm	57.2 mm	66.5 mm	17.5 mm
J-20595-13	133.4 mm	108.0 mm	17.4 mm	10.3 mm	69.9 mm	57.2 mm	30.0 mm	3.2 mm	57.2 mm	66.5 mm	17.5 mm
J-18748-23	158.8 mm	127.0 mm	19.8 mm	13.5 mm	85.9 mm	76.2 mm	35.1 mm	4.8 mm	63.6 mm	73.2 mm	31.8 mm
J-18748-27	158.8 mm	127.0 mm	19.8 mm	13.5 mm	85.9 mm	76.2 mm	35.1 mm	4.8 mm	63.6 mm	73.2 mm	31.8 mm
J-18748-28	158.8 mm	127.0 mm	19.8 mm	13.5 mm	85.9 mm	76.2 mm	35.1 mm	4.8 mm	63.6 mm	73.2 mm	31.8 mm
J-18748-29	158.8 mm	127.0 mm	19.8 mm	13.5 mm	85.9 mm	76.2 mm	35.1 mm	4.8 mm	63.6 mm	73.2 mm	31.8 mm
J-18748-30	158.8 mm	127.0 mm	19.8 mm	13.5 mm	85.9 mm	76.2 mm	35.1 mm	4.8 mm	63.6 mm	73.2 mm	31.8 mm
J-18787-13	190.5 mm	152.4 mm	27.1 mm	16.7 mm	111.3 mm	101.6 mm	38.1 mm	6.4 mm	83.8 mm	95.3 mm	50.8 mm
J-18787-15	190.5 mm	152.4 mm	27.1 mm	16.7 mm	111.3 mm	101.6 mm	38.1 mm	6.4 mm	83.8 mm	95.3 mm	50.8 mm
J-18787-16	190.5 mm	152.4 mm	27.1 mm	16.7 mm	111.3 mm	101.6 mm	38.1 mm	6.4 mm	83.8 mm	95.3 mm	50.8 mm
J-18787-19	190.5 mm	152.4 mm	27.1 mm	16.7 mm	111.3 mm	101.6 mm	38.1 mm	6.4 mm	83.8 mm	95.3 mm	50.8 mm
J-18787-20	190.5 mm	152.4 mm	27.1 mm	16.7 mm	111.3 mm	101.6 mm	38.1 mm	6.4 mm	83.8 mm	95.3 mm	50.8 mm
